Before you begin
Identify the monitor model, graphics card and cable or adapter used for each display. The available modes depend on the whole connection: GPU output, cable capability, any adapter and monitor input. A port’s shape alone does not guarantee a particular resolution, refresh rate or HDR mode.
Start with one monitor working through a direct connection. If you currently have no signal at all, use the dedicated no-display guide first. Keep a known-working display connected while configuring another so you can still see Windows settings if the new connection does not work.
Work through the checks
-
Connect to supported outputs

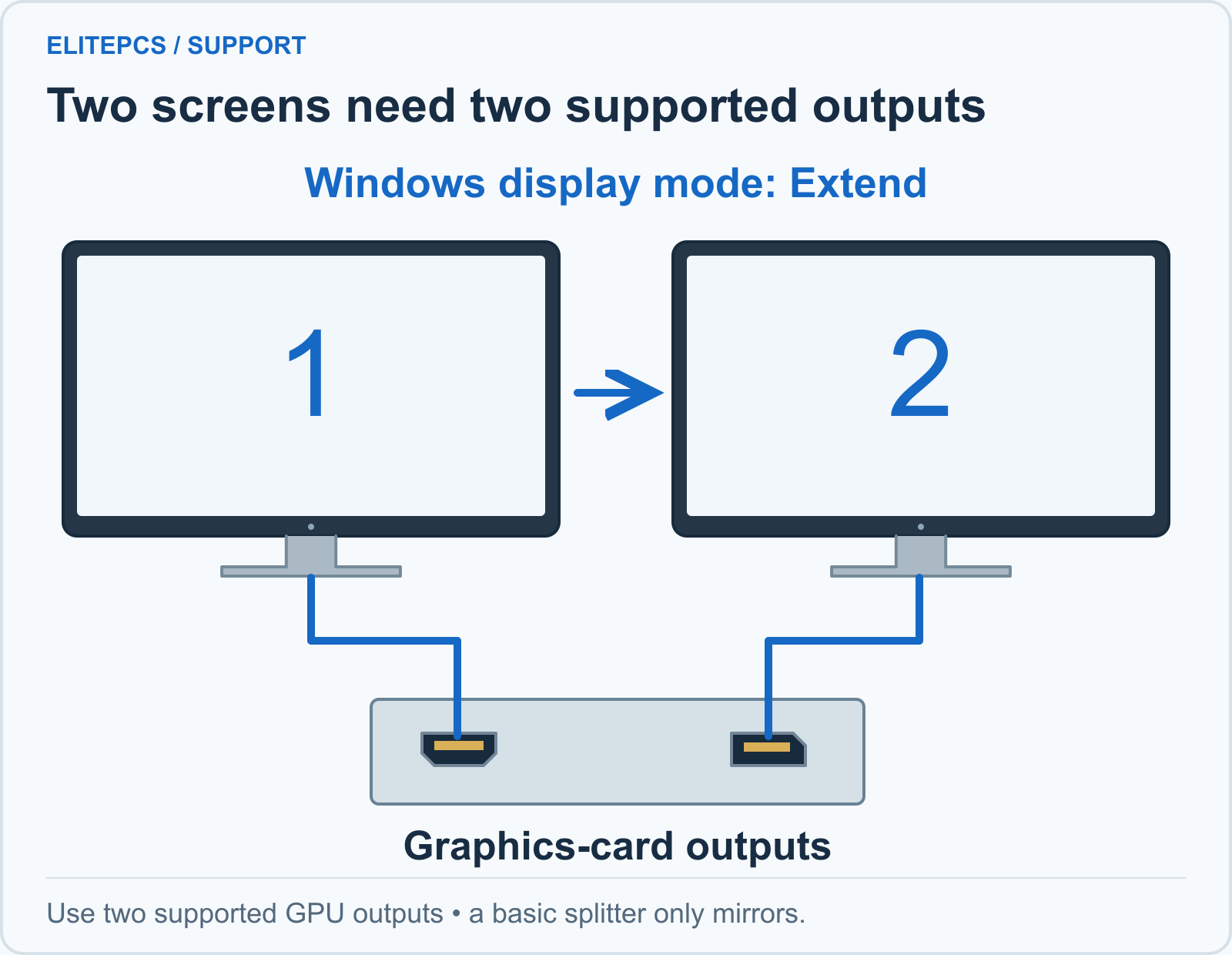

Where a discrete GPU is fitted, use its outputs for the main gaming displays unless your build has a specific alternative configuration. Motherboard outputs depend on supported integrated graphics and firmware settings. Check the GPU’s maximum active-display limits rather than counting physical ports alone. A simple HDMI splitter normally duplicates one signal; it does not create two independently controlled desktops.
-
Set each monitor’s input
Select the matching HDMI or DisplayPort input on each monitor. Test suspect cables and displays individually before combining them. For an adapter, check signal direction and supported modes; a cable intended for one conversion direction may not work in reverse. Prefer a direct suitable cable while troubleshooting and avoid connecting several unverified adapters in a chain.
-
Choose Extend or Duplicate
Press Windows + P and choose the intended display mode. Extend provides a desktop across screens; Duplicate shows the same desktop on more than one display. In Settings → System → Display, use Identify and arrange the display rectangles to match the physical positions. Set the preferred main display and check that the pointer crosses between the correct edges.
-
Set resolution, scaling and refresh rate
Use the monitor’s recommended native resolution for a clear desktop, then adjust scaling for readable text. In Advanced display, select the specific monitor before choosing a supported refresh rate. Confirm the monitor’s own input settings if its higher modes require them. Do not assume a high-refresh monitor is already operating at its advertised maximum. Avoid unsupported custom timings as a first troubleshooting step.
-
Enable HDR only on a compatible path
In Display settings, select the HDR-capable monitor and review its HDR options. Enable the corresponding monitor mode if its manual requires it, and use suitable content to test. Adjust SDR brightness or calibration as appropriate. HDR is not simply a synonym for 4K, and HDCP requirements for protected video are a separate issue from whether a game can output HDR.
-
Test the complete setup
Move ordinary windows between screens, then test the actual game and a known HDR clip if relevant. Check that audio has not switched to an unintended monitor output. If one display goes blank at a higher mode, return to the working mode and check cable bandwidth and the monitor/GPU specifications. Keep the exact resolution and refresh combination when asking support for help.
What the results tell you
Each monitor works alone but not together
Check the GPU’s active-display limits, supported combinations and Windows mode. This differs from a single bad cable.
Text looks blurred
Check native resolution, scaling and the display connection. A game’s rendering scale and Windows desktop scaling are different settings.
HDR desktop looks washed out
Check the monitor mode, content type and Windows HDR/SDR balance. Turning HDR on is not a guarantee that every SDR application will look better.
Common questions
Does adding two idle monitors triple the gaming load?
No. Rendering a game across three screens at a larger total resolution can increase load substantially; merely connecting two extra desktop displays is a different workload.
Can integrated graphics drive more than one monitor?
Many integrated-graphics systems can, subject to the CPU, motherboard outputs and supported modes. There is no universal one-monitor limit.
Will a new cable always unlock the highest refresh rate?
Only if the entire connection supports that mode. Check the monitor input, GPU output and any adapter as well as the cable.
When to contact ElitePCS
Provide monitor and GPU models, cable/adapter details, the desired resolution and refresh rate, and which individual connections work. A photo of the rear connections can make the setup much clearer.
Contact ElitePCS support. Include your order number, the exact symptom and the checks you have completed. Keep passwords, licence keys and recovery keys out of screenshots.
Technical references: Microsoft multiple-monitor setup · Microsoft external-display checks · Microsoft HDR settings. Reviewed 27 September 2026.
