Identify your PC and plan a balanced upgrade

Record the exact components, identify the performance limit and check compatibility before choosing RAM, storage, a GPU or a CPU.

Step-by-step guideReviewed 27 September 2026

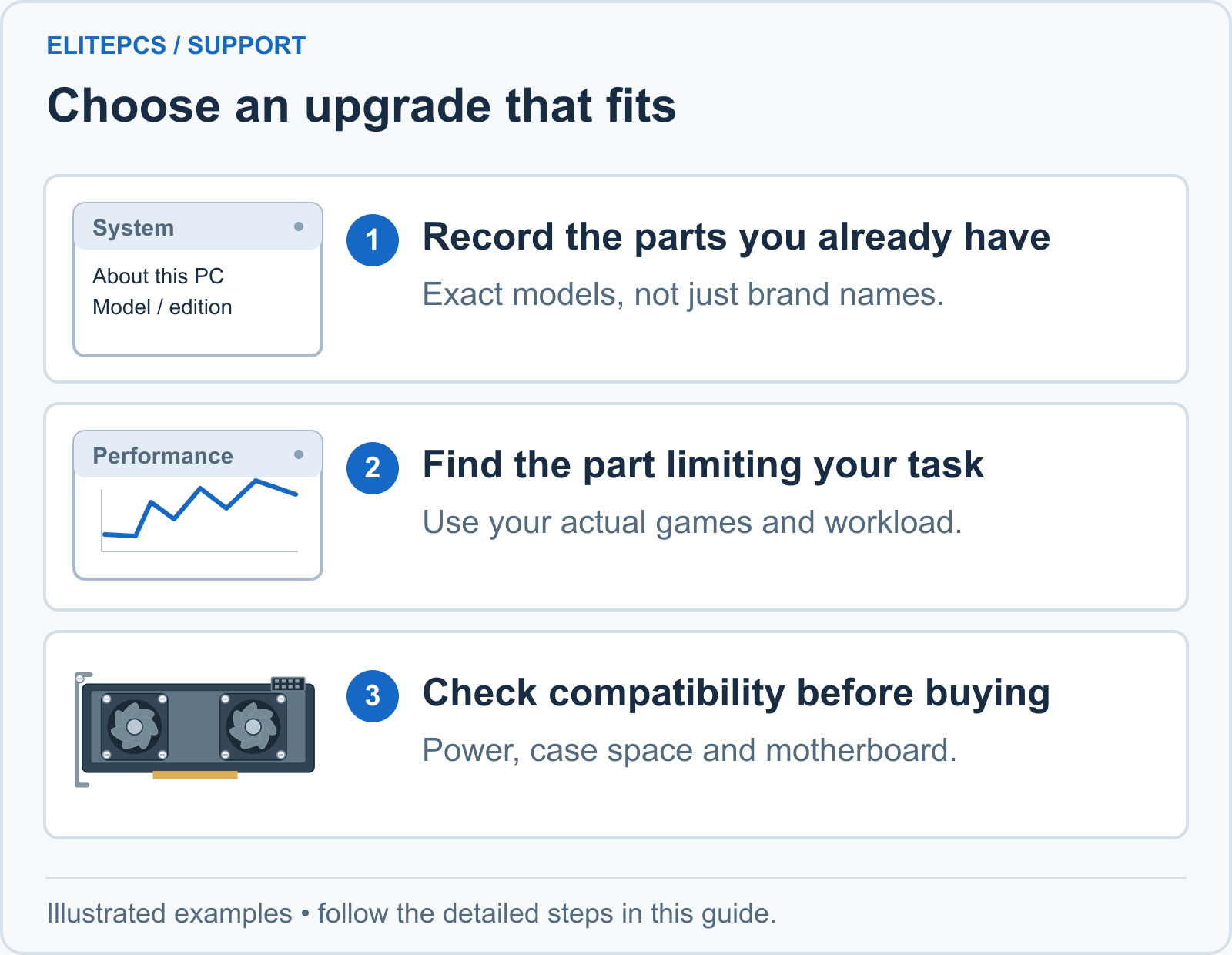

1. Record the parts you already have. Exact models, not just brand names. 2. Find the part limiting your task. Use your actual games and workload. 3. Check compatibility before buying. Power, case space and motherboard.
1. Record the parts you already have. Exact models, not just brand names. 2. Find the part limiting your task. Use your actual games and workload. 3. Check compatibility before buying. Power, case space and motherboard. Open full-size diagram .

Before you begin

An upgrade should solve a measured limitation. Write down what you want to improve: a particular game’s frame rate, loading time, multitasking, storage capacity or a creative workload. Include your monitor resolution, refresh rate and budget. These details are more useful than asking whether one processor badge is “better”.

A model family such as Core i5, Core i7 or Ryzen 7 spans many generations and power levels. Compare exact models and relevant workloads. An older high-tier processor is not automatically faster or more compatible than a newer lower-tier one, and an expensive GPU can still be limited by the rest of a system.

Work through the checks

  1. Collect the basic specification

    Open Settings → System → About for processor and installed memory. Use Task Manager’s Performance tab for a starting view of the GPU, memory and drives. Run msinfo32 for further system and motherboard details, and dxdiag for display information. These tools are useful but may not identify every retail part precisely. Compare their results with your original order.

  2. Identify the parts Windows cannot confirm

    PSU model and wattage, case clearance, cooler and exact memory-kit labels may require order records or a safely taken photograph. Do not open the PSU to identify it. Motherboard names in software can be generic, so use the physical model label or ask support if necessary. Avoid buying a component based on an assumed board model inferred only from CPU generation.

  3. Measure the workload

    Use the same game scene, resolution and settings for comparisons. Note frame-time behaviour as well as average FPS, and check CPU, GPU and memory use. A GPU at high utilisation can indicate a different limit from one waiting while the CPU or memory is constrained. An FPS cap or V-Sync can also hold utilisation down. One screenshot from the desktop is not a useful gaming benchmark.

  4. Match the upgrade to the limit

    A GPU upgrade can improve graphics-heavy performance if the CPU, PSU and case support it. More RAM helps when capacity is exhausted. An SSD can improve loading and asset access, while more storage alone is not a guaranteed FPS boost. For CPU-heavy games or productivity, compare the exact CPU and platform. Avoid applying conclusions from an old two-laptop benchmark to every modern desktop.

  5. Check every compatibility dependency

    For a GPU, check PSU capability, approved power connectors, length, thickness and airflow. For RAM, check DDR generation, kit compatibility and board capacity. For a CPU, check socket, chipset support, required firmware and cooler suitability. A processor fitting the socket is not a complete compatibility check. For Wi-Fi cards, check the supported interface, antenna connections and any Bluetooth USB-header requirement.

  6. Plan installation and validation

    Back up first, retain the working parts until the upgrade is proven and arrange help for work you are not comfortable doing. CPU installation is socket-specific and includes cooler removal, thermal-interface preparation and delicate contact handling. Do not follow a generic pin or lever diagram for a different socket. After the upgrade, test ordinary use and the original workload before adding tuning.

What the results tell you

Games load slowly but run smoothly

Storage, free space or background activity may matter more than replacing the GPU. Check the game’s storage requirements.

High-resolution graphics are the limit

Compare appropriate GPU performance while verifying PSU and case compatibility. Lowering render resolution is a useful controlled test.

Multiple apps exhaust memory

Check actual peak memory use and application requirements before choosing a compatible kit. Unused capacity alone does not speed up a workload.

Common questions

Do all PCs include a keyboard, mouse and Wi-Fi?

Check the exact product configuration and order. Accessories and connectivity are not universal across builds.

Can I install any M.2 Wi-Fi card?

No. Keying, electrical interface, platform support and antennas matter. Some Intel CNVi/CNVio modules are platform-dependent. Confirm the exact board and module.

Should I replace my CPU myself?

Only with the correct socket-specific instructions and appropriate experience. Bent contacts, cooler mounting and firmware compatibility make it a procedure worth planning with support.

When to contact ElitePCS

Send your order number, exact component list, target games or applications, monitor details and budget. We can help choose a compatible upgrade that addresses the limitation you are actually seeing.
