BIOS, CMOS and internal power connections

Identify the key motherboard connections and understand when firmware changes are appropriate, with model-specific instructions.

Step-by-step guideReviewed 27 September 2026

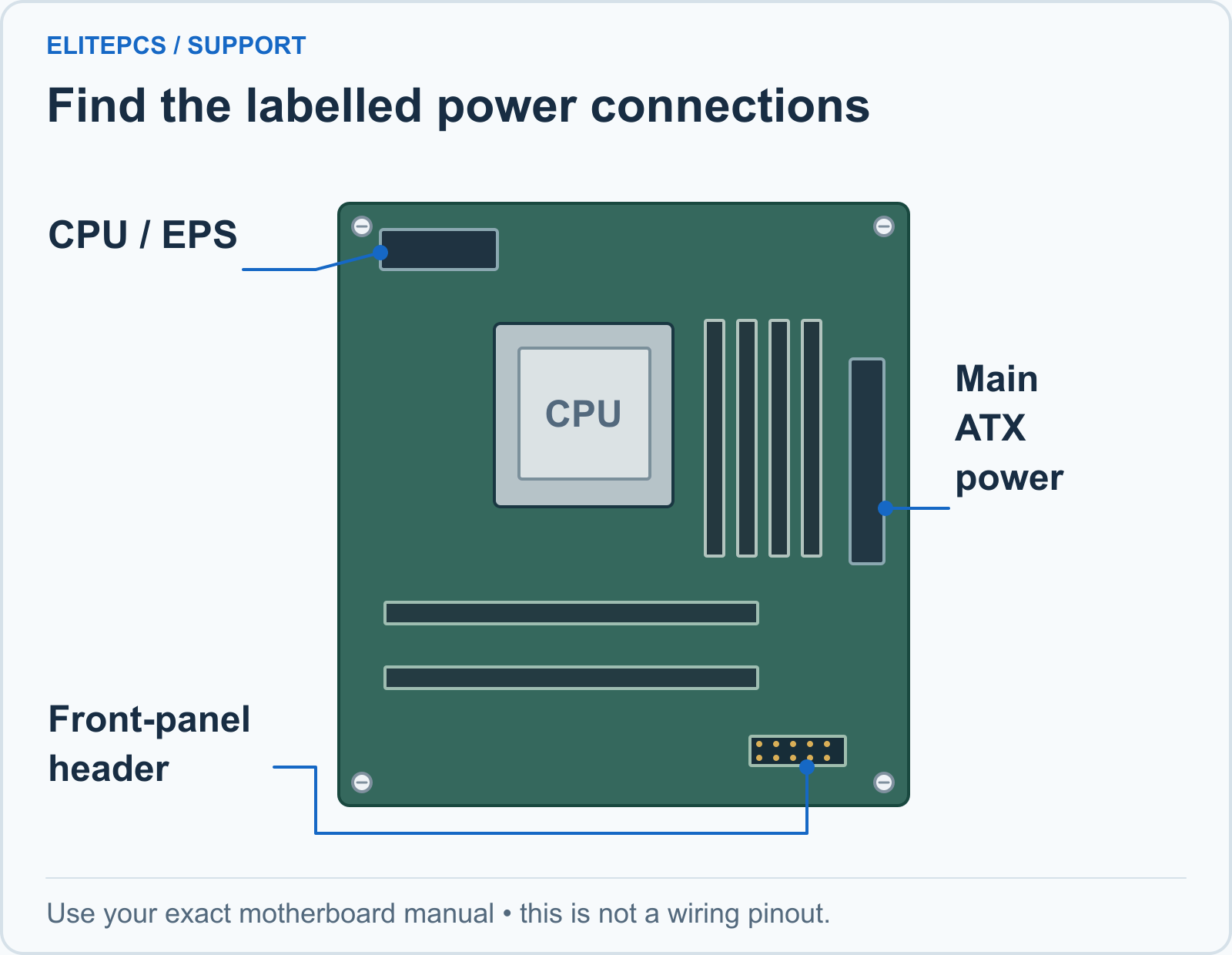

A motherboard illustration marks the CPU/EPS power socket near the processor, the long main ATX power socket at the board edge and the front-panel header near the bottom. Exact locations and pinouts vary.
A motherboard illustration marks the CPU/EPS power socket near the processor, the long main ATX power socket at the board edge and the front-panel header near the bottom. Exact locations and pinouts vary. Open full-size diagram (opens in a new tab).

Before you begin

Firmware settings and internal connectors differ between motherboards. A picture from another build can help identify the general area, but its pin numbers, menu names and shortcut keys may not match yours. Begin by finding the exact motherboard model and its official manual.

For no power, complete the external cable and socket checks first. For a boot problem, photograph the existing storage and boot settings before changing anything. Find your encryption recovery key and verify your backup. Firmware changes can trigger a recovery prompt or change how an installed operating system starts.

Disconnect mains power before handling any internal cable. Never open the PSU, short unknown pins or interchange CPU/EPS and PCIe power leads. Use only modular cables approved for the exact power-supply model.

Work through the checks

  1. Identify the major connections

    The motherboard’s main power connection is commonly a 24-pin ATX plug. CPU power is commonly a 4-pin or 8-pin EPS connection near the top of the board; additional connectors depend on the model. GPU power is separate. Read the cable and socket labels. A similar shape or a cable reaching the socket does not prove it is the correct connection.

  2. Inspect without disturbing everything

    With the PC unplugged, take clear photos and look for a visibly loose latch, damaged plug or trapped cable. If support asks you to reseat a connector, release its latch and hold the plug body. Work on one connection at a time. Do not pull wires, force an incorrect plug or press down on the CPU cooler as a substitute for checking a power cable.

  3. Use the exact front-panel pinout

    The case power switch, reset switch and small indicator LEDs connect to a motherboard front-panel header. Its layout is not universal. Match POWER SW and LED labels to the manual, including LED polarity. Do not copy a numbered pin diagram from another board. If a bundle is difficult to identify, send a close photograph rather than experimenting with a screwdriver across the header.

  4. Distinguish fan and lighting headers

    CPU_FAN, case-fan headers and pump connections have different intended uses. RGB lighting connections are another system again. Check the cooler and board manuals before moving any cable. A fan or pump being powered does not prove the cooler is mounted correctly, and a lighting failure does not automatically mean the cooling motor has stopped.

  5. Treat clearing CMOS as a planned action

    A CMOS reset returns selected firmware settings to defaults; it is not a Windows reinstall. It can change memory profiles, boot settings and fan behaviour. Use the motherboard’s documented reset method only after recording settings and preparing for encryption recovery. Battery removal, jumper position, timing and any rear clear button differ between boards. Do not run a generic powered-on battery-removal sequence.

  6. Update firmware only with a clear reason

    Check the exact model, board revision and official update instructions. Some updates require an intermediate version; others do not. There is no universal rule to jump no more than a fixed number of versions. Do not flash firmware while the PC is randomly losing power. Use the supported utility and stable power, and do not interrupt an update once it is writing.

What the results tell you

Settings or clock repeatedly reset

The battery or another configuration issue may need checking. Record the pattern and motherboard model before replacing parts.

CPU fan warning

Verify the correct cooler connection and actual cooling operation. Do not simply disable the warning if a fan or pump may have failed.

Windows stops booting after a BIOS change

Restore the documented prior setting if appropriate or contact support. Storage-mode changes are a common reason to pause before attempting Windows repairs.

Common questions

Will F9 always load defaults?

No. Shortcut keys and menu functions depend on the firmware. Read the on-screen help and the board manual.

Should a BIOS update be the first fix for no sound?

No. Start with audio selection, cabling and the appropriate driver. Use a firmware update when its relevance and prerequisites are clear.

Does every cooler use four push pins?

No. Mounting systems differ by socket and cooler. Do not copy a push-pin procedure onto a screw-mounted or liquid-cooling assembly.

When to contact ElitePCS

Ask for help if you cannot identify a connector, need a firmware update or suspect a loose cooler. Provide the board model, clear photos and the exact symptom before attempting internal changes.

Contact ElitePCS support. Include your order number, the exact symptom and the checks you have completed. Keep passwords, licence keys and recovery keys out of screenshots.
